Apple Smart Battery Case Guide

by

Apple in November launched Smart Battery Cases designed for the iPhone 11, iPhone 11 Pro, and ‌iPhone 11‌ Max to add additional battery life to Apple's newest iPhones. The Smart Battery Cases for the 2019 iPhones join Smart Battery Cases designed for the 2018 iPhone XR, XS, and XS Max. 2018 was the first year that Apple reintroduced battery cases for its devices.

Priced at $129, the Smart Battery Cases come in either black, white, or pink sand (limited to 11 Pro and Pro Max) and are made from the same material as Apple's silicone cases. From our hands on article:

How does it work?

The Smart Battery Cases are similar in design to a silicone case but with an extra bump on the back that houses the battery pack. While attached to the iPhone, the Smart Battery Case functions like an external battery pack, providing additional power to the ‌iPhone‌.


A Lightning connector built into the case connects to the Lightning port in the ‌iPhone‌, but Lightning access remains available due to an additional Lightning port in the case itself.


When you have the Smart Battery Case on your ‌iPhone‌, your ‌iPhone‌ will use all of the charge in the case before expending its own battery.

What's the capacity?

Each of the Smart Battery Cases features two 1,430mAh battery cells inside. Because there are two battery cells wired together, the cases run at a higher voltage that offers 10.9Wh of energy, making them higher capacity than previous battery cases introduced for ‌iPhone XR‌ and XS.

How much extra battery life does it add?

Apple does not list the specific amount of additional battery that each case adds, instead suggesting that the cases all deliver up to 50 percent longer battery life.

If we add an additional 50 percent battery life to the normal battery life for each of these devices, we can see the estimated battery life times are as follows:

‌iPhone‌ Alone:

  • ‌iPhone 11‌ - Up to 17 hours video playback, up to 10 hours streamed video playback, up to 65 hours audio playback.
  • ‌iPhone 11 Pro‌ - Up to 18 hours video playback, up to 11 hours streamed video playback, up to 65 hours audio playback.
  • iPhone 11 Pro Max - Up to 20 hours video playback, up to 12 hours streamed video playback, up to 80 hours audio playback.

‌iPhone‌ With Battery Case (Estimated):

  • ‌iPhone 11‌ - Up to 25.5 hours video playback, up to 15 hours streamed video playback, up to 97.5 hours audio playback.
  • ‌iPhone 11 Pro‌ - Up to 26 hours video playback, up to 16.5 hours streamed video playback, up to 97.5 hours audio playback.
  • ‌iPhone 11 Pro Max‌ - Up to 30 hours video playback, up to 18 hours streamed video playback, up to 120 hours audio playback.

Battery Case Alone (Estimated):

  • ‌iPhone 11‌ - Up to 8.5 hours video playback, up to 5 hours streamed video playback, up to 32.5 hours audio playback.
  • ‌iPhone 11 Pro‌ - Up to 9 hours video playback, up to 5.5 hours streamed video playback, up to 32.5 hours audio playback.
  • ‌iPhone 11 Pro Max‌ - Up to 10 hours video playback, up to 6 hours streamed video playback, up to 40 hours audio playback.

These are, of course, estimates based on the ‌iPhone‌ battery life and Apple's 50 percent extra battery life listing. The actual battery life that you get from each Smart Battery Case is going to vary based on what you're doing on your smartphone.

The new camera button

The Smart Battery Case has a new feature this year that sets it apart from prior Smart Battery Cases -- a dedicated camera button.

With the camera button, which is located on the right of the device under the side button, you can press it to automatically open up the camera app, regardless of whether the ‌iPhone‌ is locked or unlocked.


It provides a handy physical alternative to using the camera button on the Lock screen or the main camera app when the ‌iPhone‌ is unlocked. A press and hold will open up the camera app, and then another press will capture a photo.


If you press and hold while the camera app is open, you can record a QuickTake video. The camera button works with both the rear and front-facing cameras, and is a useful little addition that's great for getting to the camera quickly.

How does the case charge?

Apple built Qi wireless charging into the Smart Battery Case, so both the case and the ‌iPhone‌ can be charged using any Qi wireless charging accessory.


You can also charge the case via Lightning, and if you use a USB-PD compatible charger (aka a USB-C charger paired with a USB-C to Lightning cable) the case will charge up even faster. For fast charging, you can use one of Apple's USB-C Power Adapters for MacBook Air, MacBook Pro, or MacBook, but third-party USB-C chargers over 18W also work.


Your ‌iPhone‌ will always charge before the case if the battery is low, and once the ‌iPhone‌'s battery is full, the case will charge. You can also charge the case all on its own without your ‌iPhone‌ inside using any of these charging methods.

Note: The Smart Battery Case does not come with a Lightning cable for charging purposes, so you will need to supply your own.

Can I use the Lightning port with the case on?

The Smart Battery Case’s Lightning port acts as a passthrough, so you can use Lightning-based accessories like headphones and adapters with your phone while it’s inside the case.

How can I check remaining battery life?

When the Smart Battery Case is attached to the ‌iPhone‌, the battery life of the case is displayed on the Lock screen when you put it on a wireless charger, attach it to an ‌iPhone‌ for the first time, or attach a Lightning cable.


You can also check the battery life at any time by swiping to the right on the Home screen to open the Today view of the Notification Center. There's a battery widget that lists the battery life of the ‌iPhone‌, the case, and other attached devices like AirPods or the Apple Watch.

Does the 2019 cases work with the 2018 iPhones?

Yes, with some caveats. The case is designed for the ‌iPhone 11‌ and ‌iPhone 11 Pro‌ models, and there are some differences with the camera cutout. You can get the ‌iPhone XR‌, XS, or XS Max into the new case and it will charge, but the new side camera button is nonfunctional.

Where can I buy the Smart Battery Case?

Apple sells the Smart Battery Cases for ‌iPhone 11‌, 11 Pro, and 11 Pro Max both online and in its retail stores. The cases are priced at $129.

iPhone XS, XS Max, and XR Smart Battery Case Replacement Program

For ‌iPhone‌ owners who have a Smart Battery Case designed for the ‌iPhone XS‌, XS Max, or XR, Apple has launched a Smart Battery Case Replacement Program and is offering free replacement cases to customers who have had issues with charging the case or getting the case to properly charge an ‌iPhone‌.

Related Roundups: iPhone XS, iPhone XR

Related Articles

Apple Launches Replacement Program for Smart Battery Cases Designed for iPhone XS, XS Max, and XR

Friday January 10, 2020 1:55 pm PST by
Apple today launched a battery case replacement program for Smart Battery Cases designed for the iPhone XS, XS Max, and iPhone XR. According to Apple, some Smart Battery Cases can experience charging issues, including cases that will not charge or charge intermittently when plugged into power, or cases that will not charge an iPhone or charge it intermittently. Affected Smart Battery...

Apple Advises iPhone 11 Smart Battery Case Users to Update to iOS 13.2 to Ensure Camera Button Works Properly

Friday December 6, 2019 1:18 pm PST by
In an internal document shared with Apple Authorized Service Providers today, obtained by MacRumors, Apple has indicated that some customers may report that the camera button on the Smart Battery Case for the iPhone 11, iPhone 11 Pro, or iPhone 11 Pro Max does not function correctly. Before providing service, Apple has advised technicians to ensure the iPhone is updated to the latest iOS...

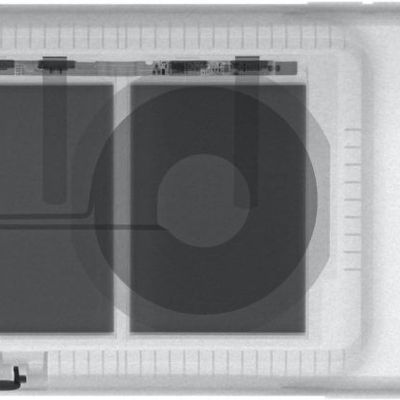

iFixit Does X-Ray Teardown of New iPhone 11 Smart Battery Case

Tuesday November 26, 2019 10:52 am PST by
Apple last week debuted new Smart Battery Cases designed for the iPhone 11, iPhone 11 Pro, and iPhone 11 Pro Max, with each case adding 50 percent additional battery life to its respective iPhone. Noted repair site iFixit and Creative Electron today did an x-ray teardown of the new battery cases to take a quick glimpse at what's inside and how the near camera button feature works....

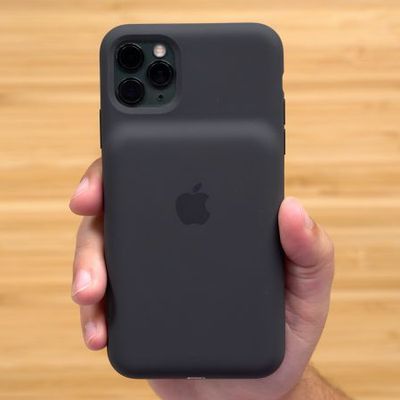

Hands-On With Apple's New Smart Battery Case for iPhone 11 Pro Max

Friday November 22, 2019 12:33 pm PST by
Apple on Wednesday unveiled new Smart Battery Cases designed for the iPhone 11, iPhone 11 Pro, and iPhone 11 Pro Max, offering up extra battery life for its newest flagship smartphones. The first Smart Battery Case orders are arriving to customers today and the cases are in stores, so we picked one up to give MacRumors readers a heads up on the features and the differences compared to last...

Images of New Smart Battery Cases for iPhone 11 and 11 Pro Found in iOS 13.2

Monday October 28, 2019 10:53 am PDT by
Apple is working on new Smart Battery Cases designed for the iPhone 11 and 11 Pro according to assets found by MacRumors in the latest version of iOS 13. There are three different model numbers for the battery cases, and each battery case image found by MacRumors has a slightly different look, indicating Apple will release separate Smart Battery Cases for iPhone 11, 11 Pro, and 11 Pro Max. ...

Evidence of New Smart Battery Cases for iPhone 11, 11 Pro, and 11 Pro Max Found in iOS 13 Code

Friday September 20, 2019 7:09 am PDT by
References to three new Smart Battery Cases made by Apple have been found inside the code for iOS 13.1, appearing to confirm that the iPhone 11, 11 Pro, and 11 Pro Max will all be getting Smart Battery Cases in the future (via 9to5Mac). iPhone XS Smart Battery Case The model codes for the cases are A2180, A2183, and A2184, which are believed to represent Smart Battery Cases for the iPhone 11, ...

Smart Battery Cases for iPhone XS, XS Max, and XR in Short Supply and Won't Ship Until July

Thursday May 30, 2019 4:21 pm PDT by
Supplies of Apple's Smart Battery Cases for the iPhone XS, XS Max, and XR are limited right now, and new orders made for a Smart Battery Case in the United States won't ship out until July. There's no word on why the Smart Battery Cases are temporarily unavailable from Apple, but there could have been a manufacturing delay or issue that has caused available supply to dry up. Right now,...

Deals Spotlight: Apple's Smart Battery Case for iPhone XR Available for $102 ($27 Off) From Amazon [Updated]

Tuesday May 14, 2019 6:11 pm PDT by
Apple's Smart Battery Case for iPhone XR is available for $102 from Amazon right now, a $27 discount off of the regular $129 price tag for the accessory. The discounted price is limited to the Smart Battery Case that comes in black, with the white color option still available for the regular price. There are also no discounts on the Smart Battery cases for the iPhone XS or iPhone XS Max. Not...

Deals Spotlight: Apple's Smart Battery Cases for iPhone XS, XS Max, and XR Discounted by $11

Wednesday January 30, 2019 5:54 am PST by
Amazon and B&H Photo this week have introduced the first straight price discount on Apple's just-released Smart Battery Case for iPhone XS, XS Max, and XR. The sales are discounting the price of the new accessory by about $11. Visit the MacRumors YouTube channel to watch our hands-on video with the new cases The cases are priced the same across Amazon and B&H Photo. Check out the full list...

Hands-On With Apple's New Smart Battery Cases

Thursday January 17, 2019 2:47 pm PST by
Apple on Tuesday released new Smart Battery Cases for the iPhone XS, XS Max, and XR, offering a convenient but expensive way for iPhone users to get additional battery life. The Smart Battery Cases will be in stores starting tomorrow, but we got our hands on the iPhone XS Max and XR versions early to check out the features and to see if they're worth the $129 price tag. Subscribe to the ...

Smart Battery Case for iPhone XS Appears to Be Compatible With iPhone X

Wednesday January 16, 2019 10:18 am PST by
Apple yesterday debuted new Smart Battery Cases for the iPhone XS, XS Max, and XR, and review units are in the hands of members of the media and some lucky people who received early deliveries. Many iPhone X users have been wondering if the iPhone XS Smart Battery Case will work with the older model given that the two devices are nearly identical in design, and the answer appears to be yes,...

Correction: iPhone XS and XS Max Smart Battery Cases Have Larger Capacity Than Previous Versions

Wednesday January 16, 2019 7:30 am PST by
While reports today suggested that Apple's new Smart Battery Cases for the iPhone XS and iPhone XS Max have lower battery capacities than previous versions for iPhone 6 and iPhone 7 models, it turns out the new cases actually have larger capacities than the old ones when taking voltage into consideration. The new iPhone XS and iPhone XS Max cases are rated at 1,369 mAh, lower than the iPhone ...

iPhone XS-Like Smart Battery Case Icon Spotted in Action on iOS 12.1.2

Thursday January 3, 2019 7:40 am PST by
An icon depicting what appears to be a Smart Battery Case for the iPhone XS has been spotted in action on an iPhone running iOS 12.1.2, providing yet another clue that Apple may be planning to release such an accessory. The discovery was made by a Reddit user named Tom, who decided to significantly trim down Apple's Smart Battery Case for the iPhone 7 to fit his iPhone X. Not only did the...

iPhone XS and iPhone XS Max Smart Battery Cases Spotted in Apple's Fall 2018 Merchandising Guide

Tuesday December 18, 2018 4:25 am PST by
Photos of Apple's rumored Smart Battery Cases for the iPhone XS and iPhone XS Max have been uncovered in a product merchandising guide for Apple Premium Resellers that was obtained by the blog Appleosophy. The guidelines instruct Apple Premium Resellers how to organize Apple's various leather and silicone cases for the iPhone 7 through iPhone XS Max in their stores. While the photos are low...

Apple Expected to Release iPhone XS Battery Case Soon, Possibly iPhone XS Max and iPhone XR Versions Too

Friday December 7, 2018 10:42 am PST by
Apple appears to be readying the release of a new Smart Battery Case for the iPhone XS, and possibly versions for the iPhone XS Max and iPhone XR too, based on information uncovered by 9to5Mac's Guilherme Rambo. Rambo uncovered references to three model identifiers for the case in iOS code, including A2070, A2071 and A2171, suggesting that Apple could release the case in three different...

Apple Potentially Working on Smart Battery Case for Latest iPhones

Thursday December 6, 2018 8:54 am PST by
It's been three years since Apple first debuted the $99 Smart Battery Case for iPhone 6, 6s, and eventually 7, which included a rear-facing protrusion that held a 1,877 mAh battery. Apple may be working on a similar accessory for newer iPhone models, according to a discovery made by 9to5Mac in the second beta of watchOS 5.1.2. In previous versions of watchOS, Apple Watch had an icon that...

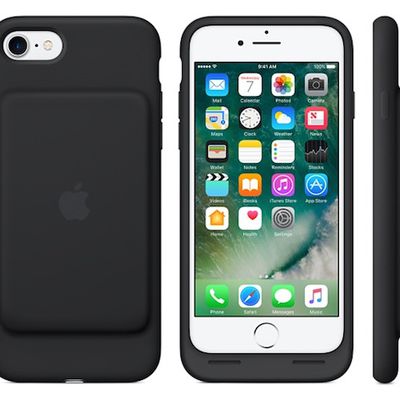

Apple's iPhone 7 Smart Battery Case Offers 26% More Charge Than iPhone 6s Version
