Leaked 'iPhone 5S' Rear Shell Likely for iPhone 5, Rumored Specs Equally Suspect

by

Earlier this week, a user on China's microblogging service Sina Weibo posted a pair of photos showing what many observers have concluded must be the rear shell of the iPhone 5S, despite the user simply commenting "What is this?" alongside the photos.

iphone_rear_shell_not_5s
The photos were quickly picked up [Google translation] by Chinese site EXPreview, which paired them with specific claims about the specs of the iPhone 5S, including a graphics upgrade from the triple-core PowerVR SGX543MP3 to the quad-core SGX554MP4 found in the current-generation iPad, an increase in RAM to 2 GB, a 12-megapixel rear camera with dual-LED flash, support for faster LTE-Advanced data networks, NFC support, and a fingerprint reader.

The EXPreview report was soon cited by ExtremeTech, and has been slowly making its way around the rumor community before gaining significant momentum today.

The first problem is with the photos themselves, which appear to actually show a rear shell for an iPhone 5, not an iPhone 5S. The key point is the layout of the three main screw holes where the logic board attaches to the bed of the shell. The layout of these screw holes matches up perfectly with the logic board of the iPhone 5, but is inconsistent with screw holes seen on iPhone 5S parts leaked so far.

iphone_5s_5_logic_board_screws

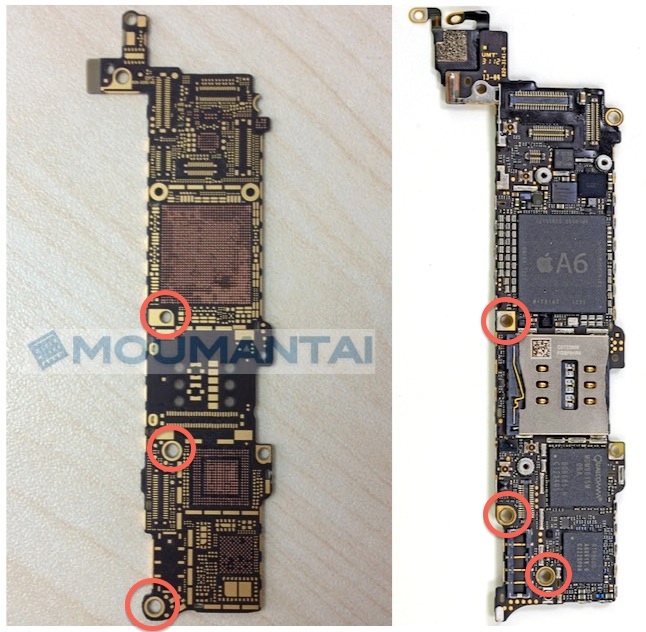

iPhone 5S (left) and 5 (right) logic boards compared with main screw holes circled in red

The iPhone 5S logic board was first seen as a photo leak of the bare board last month, revealing that the layout of the main screw holes has shifted, with the most obvious difference being the bottommost hole moving to the extreme lower left corner of the board rather than being more centered and set in a bit from the bottom of the board as seen on the iPhone 5. Our own leaked photos of an iPhone 5S prototype indeed show a screw hole at the bottom left corner of the logic board.

As for the specs, they appear to simply be a summary of many previous rumors and are extremely unlikely to be based on any specific information. Rumors of a 12-megapixel rear camera and LTE-Advanced support have surfaced from other sources. Our photos of the prototype show the dual-LED flash next to the rear camera and contradict EXPreview's claim of 2 GB of RAM, as part numbers on the device's main chip point to it carrying 1 GB of Elpida DRAM. So while some of the alleged specs may prove to be accurate, we believe the site's claims to simply be a case of summarizing nearly every possible rumor already floating around.
