Teardown Suggests Apple Watch Series 5 Components are Close to Identical to Series 4

The internals of the Apple Watch Series 5 are almost identical to the internal components of the previous-generation Apple Watch Series 4, according to a new teardown conducted by repair site iFixit.

That should come as no surprise as the two devices are identical in design, with the major differentiating factor being the Always-On display in the newer model.

series5teardown
iFixit hoped to get a look at the changes implemented to allow for the Always-On display, but much of what's new relates to display technology and is "invisible to the human eye."

The site did spot a new ambient light sensor embedded under the OLED panel, and Apple says there are more advanced display drivers and an improved power management chip in the Series 5 as well.

There's a new built-in compass and the battery is slightly bigger than the battery in the Series 4 (1.4% larger in the 44mm model). The Series 5 chip includes 32GB of storage, up from 16GB, and the new compass, but it features the same GPU and CPU as the Series 4 so there are no real performance improvements.

series5battery

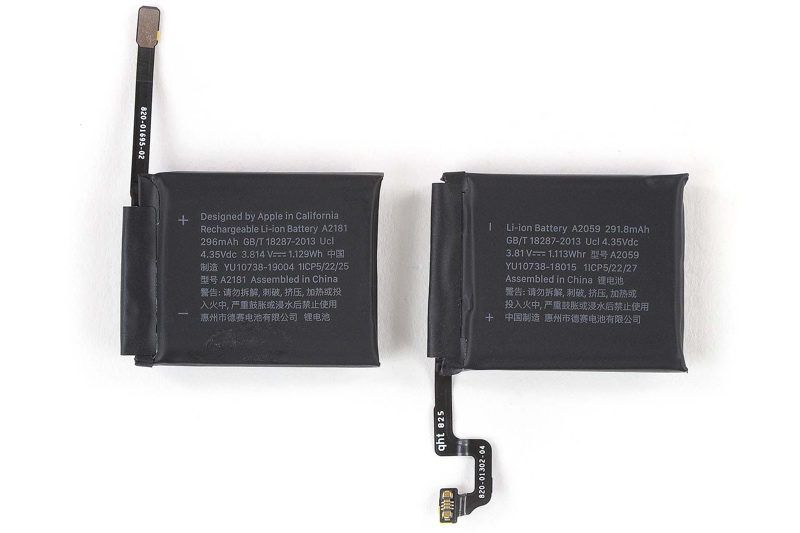

Series 4 battery on left, Series 5 battery on right

iFixit says there are minor changes to connectors for the Taptic Engine, display, and battery, which means components are not generally interchangeable, but otherwise, the two devices are "very similar" on the inside.
