Car Audio Installer Creates Custom Entertainment System Using iPads, Apple TV

by

Before heading on a road trip from Los Angeles, California to Phoenix, Arizona with his family to watch spring training baseball, MacRumors forum member and car audio installer Wesley, otherwise known as MrMacMini, decided that some entertainment would be needed for the five-hour drive. With a love for both Apple products and car audio installations, he decided to create his own entertainment system based on a pair of iPads, an Apple TV and Alpine headrest monitors in his 2011 Toyota Sienna.

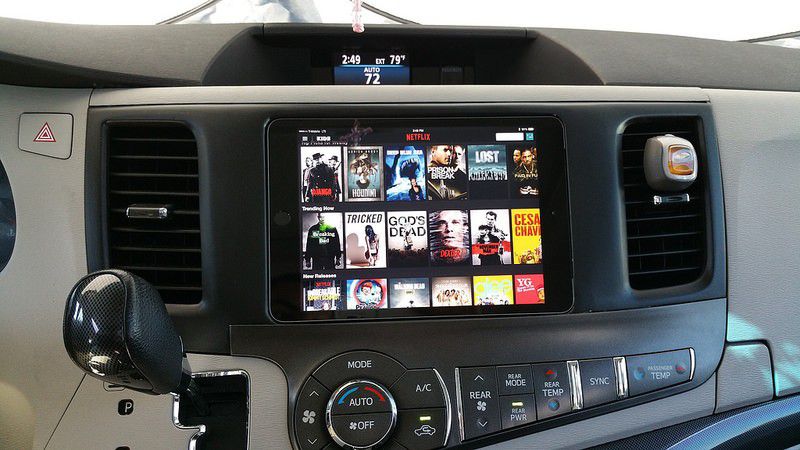

Toyota Sienna iPad
The custom in-car entertainment system consists of a removable iPad mini retrofitted into the vehicle's dashboard, alongside two discontinued Alpine PKG-M780 headrest monitors in the rear that mirror an iPad 2 over AirPlay using a third-generation Apple TV. The setup also includes a 1TB Seagate Wireless Plus hard drive and Alpine CDE-HD149BT head unit for AM, FM, HD Radio, CDs and Bluetooth streaming audio. Wesley also purchased factory brackets to mount the head unit in the factory rear DVD player location.

"The iPad mini sends the sound via Bluetooth to the Alpine head unit. I opted for keeping a head unit so that I can still use the steering controls and have access the radio, in case 1 day I forget the iPad at home," explains Wesley. "The rear screens run independent. My daughters can watch anything they want via the Apple TV and the 1TB wireless Seagate. If we all want to want to watch the same thing, I have it set up so that I can AirPlay from the iPad mini to the Apple TV and have the sound feed back through the Alpine head unit."

Equipment Used

  1. iPad mini 3 running iOS 8.1 (jailbroken) — in the dash, fully removable

  2. iPad 2 — used for rear monitors

  3. Apple TV 3 — used for rear monitors

  4. Alpine CDE-HD149BT — AM/FM/HD Radio/CD/BT streaming audio head unit

  5. Alpine PKG-M780 (discontinued) - Dual 7" headrest monitors

  6. Seagate Wireless Plus - 1TB HDD

A complete gallery of before and after photos, including pictures of the individual parts and assembly process, can be found within the discussion forums. For those without the DIY savviness to create their own in-car entertainment system, Alpine has partnered with Apple as an official maker of aftermarket CarPlay systems, which bring Maps, Messages, Phone, Music and Siri to the dashboard, for between $700 to $1400 depending on the unit.

Toyota Apple Entertainment System
Given that certain car manufacturers are only now beginning to roll out CarPlay support in select new vehicles, and the expensive price tag of aftermarket systems by Alpine and Pioneer, this custom Apple-powered entertainment system could be a more affordable, not to mention cool, alternative for those that may have an iPad or two kicking around the house. If you have any Apple-related DIY projects, past or present, be sure to let us know by sending us a tip.
